Nanocrystalline Common Mode Chokes: The Best Choice for High-Frequency Noise Suppression and Temperature Stability

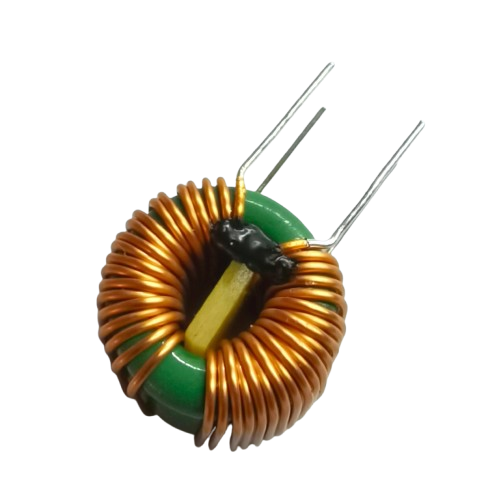

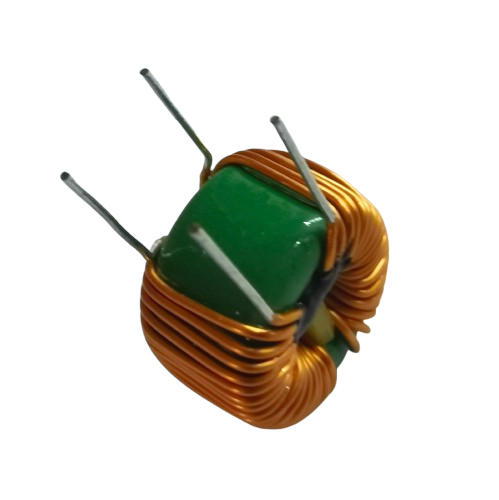

Product Pictures:

Product Advantages:

1. High-Frequency Performance with Nanocrystalline Materials:

The nanocrystalline material used in our chokes offers higher magnetic permeability and lower core loss, making it ideal for high-frequency environments. Even in high-frequency conditions, it efficiently suppresses noise and ensures stable circuit operation.

2. Excellent Temperature Stability:

Our nanocrystalline common mode choke operates over an extended temperature range of -20ºC to 85ºC, maintaining exceptional performance even under extreme temperatures. This makes it suitable for a wide range of demanding applications.

3. Superior Noise Suppression:

Designed specifically for common-mode noise suppression, this inductor effectively filters high-frequency noise, reducing electromagnetic interference and ensuring electromagnetic compatibility (EMC) for your circuits, providing clean and stable power signals.

4. Reliable Long Lifespan and Low Power Loss:

With its low loss characteristics, the nanocrystalline choke generates minimal heat, which helps extend its lifespan and improve overall system efficiency.

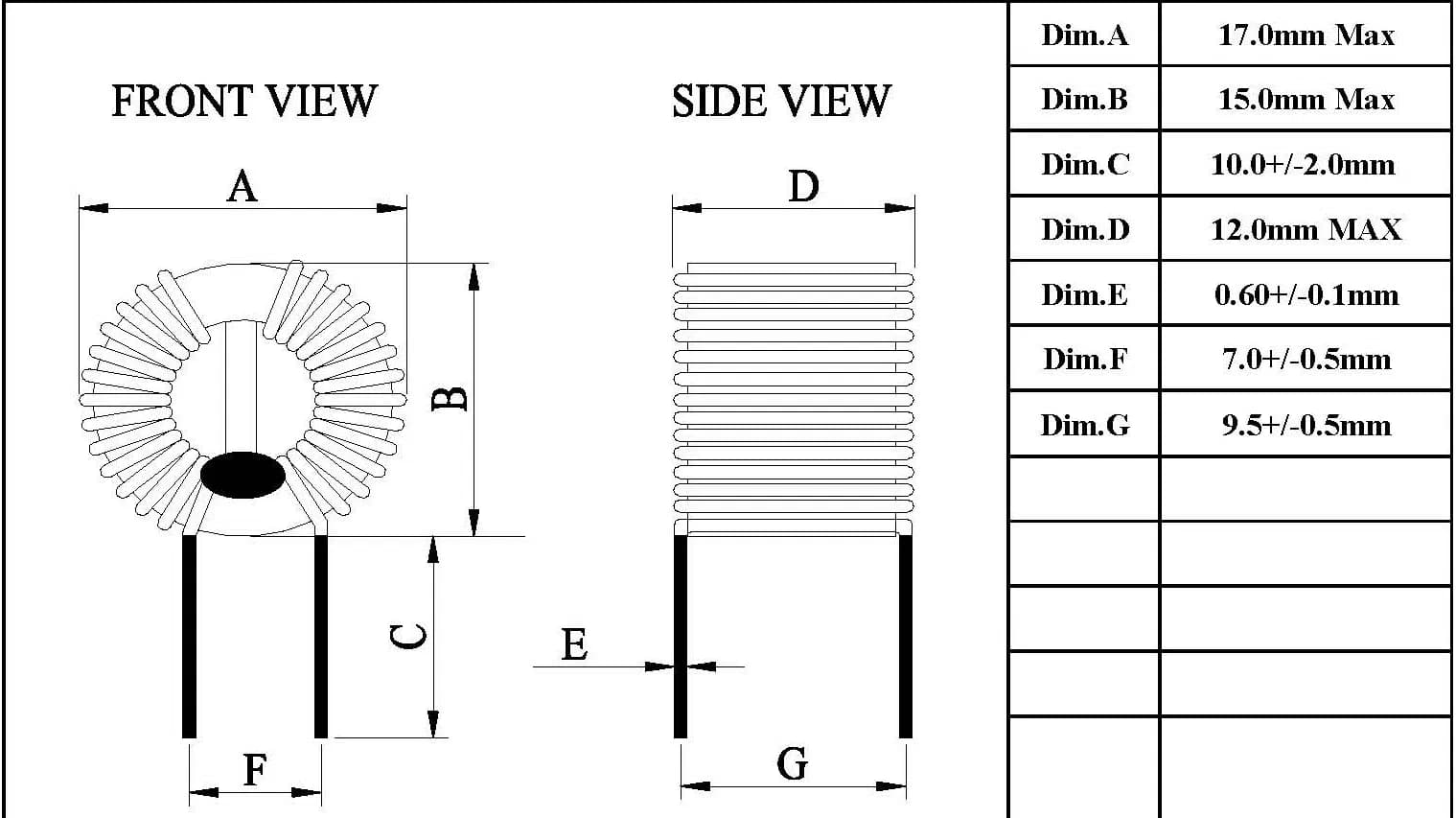

Technical Specifications:

• Model No: JHCMT50011

• Type: Common Mode Choke

• Working Frequency: High Frequency

• Structure: Single Coil, Multilayer Coil

• Material Type: Nanocrystalline

• Operating Temperature: -20ºC to 85ºC

• I Rating: 3.0A Max

• Inductance Range: customizable

• Applications: Automotive Electronics, Power Supply Systems, Industrial Equipment

• Certification: RoHS, Reach, SGS

• Packaging: Tray + Carton

• Origin: Dongguan, China

Electrical Characteristics:

Inductance (1-4/2-3): 4.0mH Min. @10KHz/0.1V

DCR (1-4/2-3): 45.0 mΩ Max. (at 25ºC)

Hipot Test (1-2): 1000V AC for 1 second at 5mA

Applications:

• Automotive Electronics: Protects automotive systems from electromagnetic interference (EMI).

• Power Supply Systems: Filters noise to improve the performance and reliability of power supplies.

• Industrial Equipment: Ensures stable operation of industrial equipment in complex environments.
