How to Achieve "Zero Defects" in Vacuum Heat Treatment? A Deep Dive into Our Heating Control System

In the production of high-performance soft magnetic materials, such as nanocrystalline and amorphous cores, the annealing process is the ultimate bridge between raw material and peak magnetic performance. It determines permeability, saturation induction (Bs), and core loss.

Recently, during a factory tour, a client asked a sharp and vital question:

"What happens to the product quality if a heating element in the vacuum furnace ages or a thermocouple fails during a cycle?"

While this is a rare occurrence, at JH Amorphous, we treat "minimal probability" as a "must-solve challenge." Here is how we maintain a 100% quality rate through our Active Prevention and Passive Defense systems.

1. The Challenge: Why Temperature Precision is Non-Negotiable

Nanocrystalline materials rely on a precise temperature profile to form their unique grain structure. A deviation of even 5°C can lead to uneven crystallization, compromising the consistency of the magnetic cores. Protecting the heating elements means protecting the product’s lifeline.

2. Active Prevention: Eliminating Risks Before They Occur

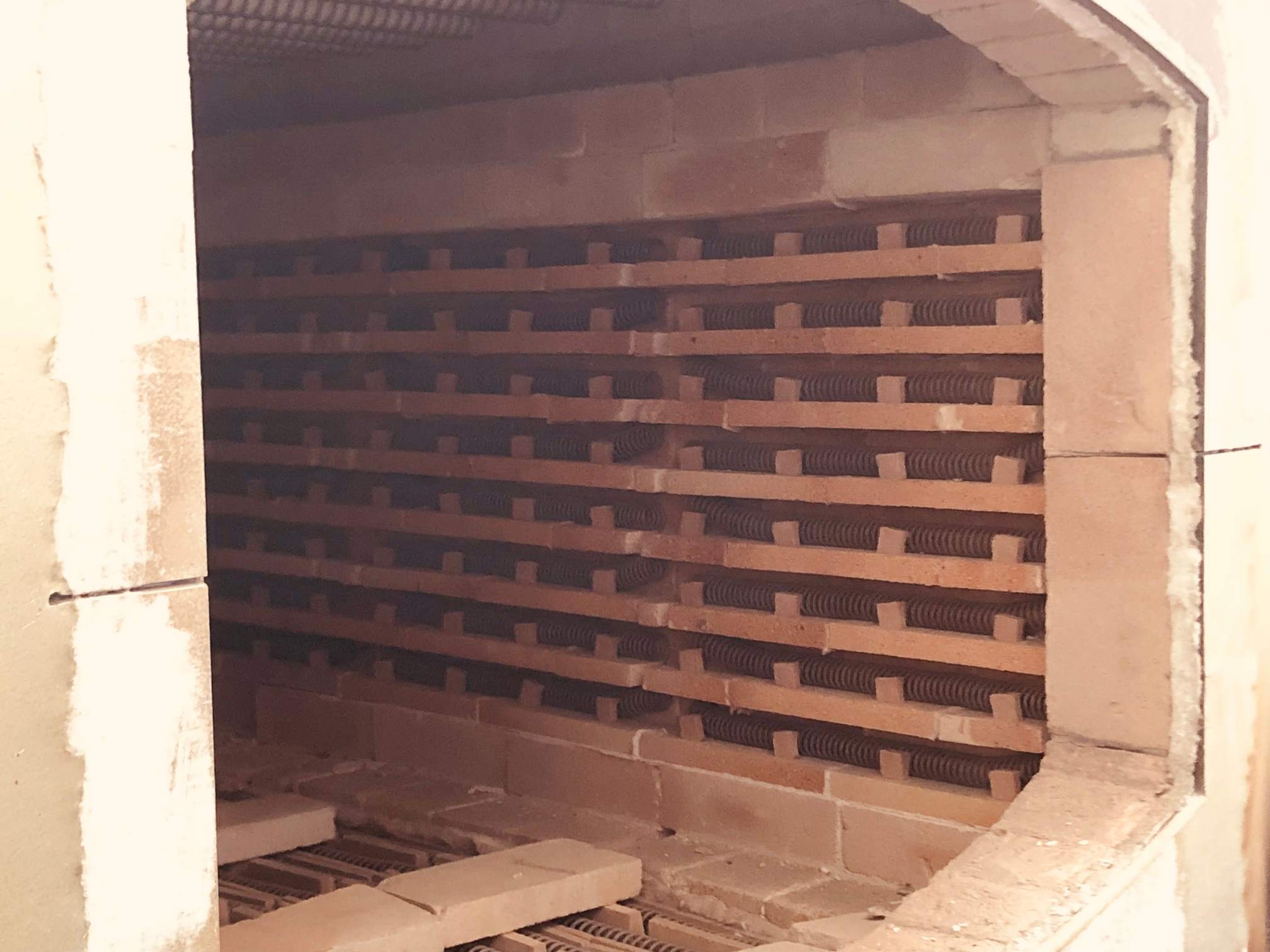

• Preventive Maintenance (PM): We don't wait for a burnout. We track the service life of every component and replace heating elements and thermocouples once they reach 80% of their theoretical lifespan.
• Regular TUS (Temperature Uniformity Survey): We periodically perform multi-point TUS using high-precision calibration tools to ensure the "Working Zone" inside the furnace maintains perfect thermal balance.

3. Passive Defense: Real-Time Monitoring & Redundancy

• PLC-Based Current Monitoring: Our furnaces are equipped with intelligent PLC systems that monitor the current in every heating segment. If a heating element shows a slight resistance drift or micro-crack, the system triggers an immediate "Current Imbalance" alert.
• Dual-Thermocouple Redundancy: We use a "Control + Monitoring" dual-thermocouple setup. If the primary sensor drifts by more than 2°C, the monitoring sensor identifies the discrepancy instantly and enters a safety mode.

4. The Quality Loop: Digital "Thermal Birth Certificates"

Every batch of cores has a digital footprint. We log power consumption, vacuum levels, and temperature data every minute. If any electrical fluctuation occurs, that batch is automatically flagged for 100% magnetic performance re-testing.

We aren't just selling magnetic cores; we are selling the reliability of a strictly controlled engineering process.

Whether you are designing for EV fast charging or smart grids, JH Amorphous is your stable partner.
