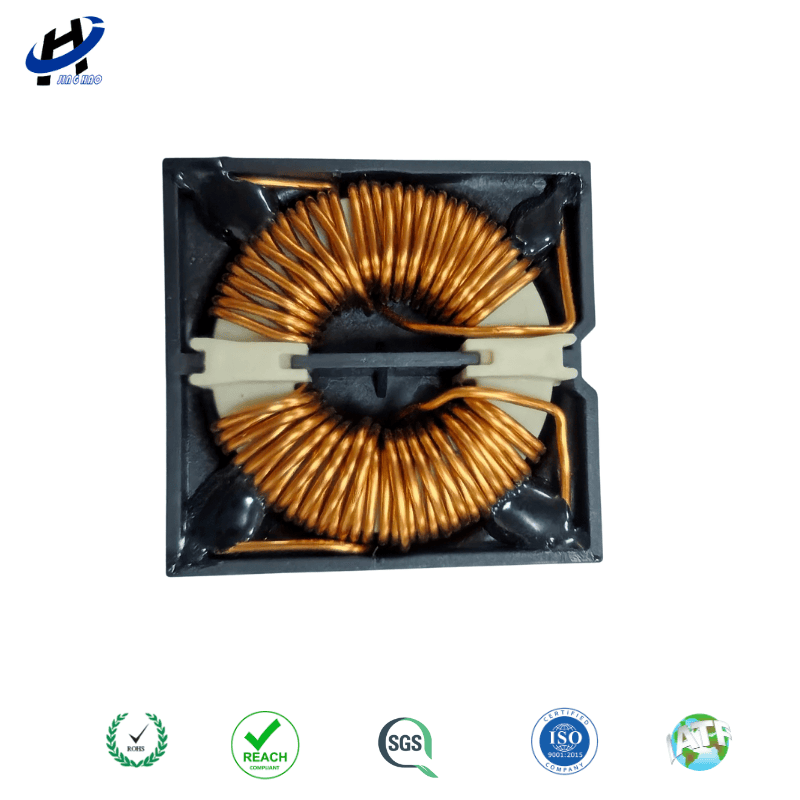

• Mastering EMI Suppression: A Comprehensive Guide to Common Mode Chokes



  May 12, 2026

  In modern power electronics and high-speed data transmission, noise is the enemy of performance. Whether you are designing a medical device or an EV charging system, managing Electromagnetic Interference (EMI) is critical for regulatory compliance and signal integrity. At the heart of this challenge is a vital component: the Common Mode Choke.   What is a Common Mode Choke? A common mode choke is an electromagnetic component used to filter out high-frequency noise shared by two or more power or signal lines. It provides high impedance to unwanted "common mode" noise while allowing the intended "differential mode" signals to pass through with minimal loss. How a Common Mode Choke Works   The device consists of two insulated copper coils wound around a single magnetic core. It operates based on the principle of magnetic field interaction: Common Mode Noise: Currents flow in the same direction on both lines. Their magnetic fields reinforce each other within the core, creating high resistance that "chokes" the noise.   Differential Signals: Desired currents flow in opposite directions. The magnetic fields cancel each other out, allowing the signal to flow freely without distortion.   Selecting the Right Core Material The magnetic core is the "brain" of the choke. The material you choose—whether it’s traditional ferrite or advanced nanocrystalline—directly dictates your filter’s frequency response and thermal limits.   1. MnZn Ferrite (Manganese-Zinc) Best for: Low-to-Mid Frequency Suppression (10kHz – 30MHz). MnZn ferrite is the industry standard for general EMI filtering. Key Benefit: High initial permeability (μi up to 15,000) provides massive impedance at low frequencies. Typical Use: AC/DC power supplies and household appliance filters.   2. Nanocrystalline (e.g., 1K107) Best for: High-Density & High-Temperature Applications. Nanocrystalline cores are the premium choice for modern hardware, offering high saturation induction (~1.25T). Key Benefit: Exceptional performance in a compact footprint and high stability up to 180°C. Typical Use: Electric Vehicle (EV) onboard chargers, solar inverters, and high-performance server supplies.   3. NiZn Ferrite (Nickel-Zinc) Best for: High-Frequency & Radiated EMI (>30MHz). Key Benefit: High electrical resistivity prevents eddy current losses at MHz and GHz frequencies. Typical Use: Data lines (USB-C, HDMI, CAN bus) and communication hardware.   Technical Material Comparison Material Type Permeability (μi) Saturation (Bs) Ideal Frequency Range Footprint MnZn Ferrite 5,000 – 15,000 ~0.5 T 10kHz - 30MHz Standard Nanocrystalline 20,000 – 190,000 ~1.2 T 10kHz - 50MHz+ Compact NiZn Ferrite 100 – 1,000 ~0.3 T 30MHz - 1GHz Standard   Frequently Asked Questions   What is the difference between a common mode choke and a normal inductor? A standard inductor filters both signal and noise (differential mode). A common mode choke specifically targets noise shared across lines while leaving the actual signal untouched.   When should I use Nanocrystalline instead of Ferrite? Choose nanocrystalline cores if your design has strict space constraints or operates in high-temperature environments. They offer superior energy density compared to traditional MnZn ferrites.   Reference: https://www.amorphousoem.com/blog/common-mode-choke-inductor-design-a-strategic-guide-to-high-performance-magnetics Need a Custom EMI Solution? Selecting the right material is essential for passing CISPR 32 or Class B limit lines. Contact our engineering team today to discuss custom core specifications for your next project.
